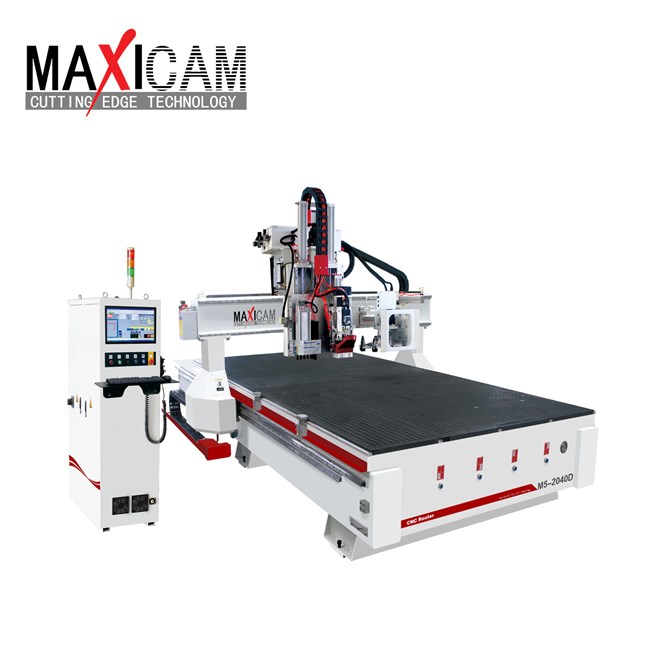

Standard Configuration:
1) Working Area: 1200*2400*270mm
2) Vacuum table (with Becker vacuum Pump)
3) HSD 9.0 Kw Air cooling spindle made in Italy
4) 8 positions rotary auto tool changing magazine
5) Japanese Yaskawa Servo System
6) Syntec control system made in Taiwan
7) THK Linear guide made in Japan
8) Taiwanese Delta Inverter
9) German Eisler Reducer
10) German Schneider Electronic Spare Parts
11) Type 3 software
12) 3PH 380V 50HZ
Option items:
1) Oil mist cooling system
2) Dust collect system
3.0 KW single bag
5.5 KW double bags
3) Extra tool holders
4) Exclusive Drilling System ( 9 drilling + 4 milling + 2 saw)
5) Working area: 1500*3000*270 mm
2000*3000*270 mm
2000*4000*270 mm
Description of drilling system:
This multi function drilling system could be used to drill vertically and horizontally. Fast and effective than spindle drilling and reduce ATC procedures.
Technical parameters:
Item
|
M5-1224D
|
M5-1530D
|
M5-2030D
|
Working area
|
1200*2440*270 mm
|
1500*3000*270 mm
|
2000*3000*270 mm
|
Table Size
|
1220x2440mm
|
1520*3000 mm
|
2020*3000 mm
|
Transmission
|
X、Y with linear guide Z with ball screw
|
Table structure
|
Vacuum table
|
Spindle
|
9.0 KW Italian HSD Spindle
|
Spindle speed
|
0-24000 RPM
|
Speed
|
MAX traveling speed : 50000 mm/min
|
MAX working speed : 25000 mm/min
|
Drive system
|
YASKAWA servo drivers and motors from Japan
|
Working voltage
|
AC380V/3PH/50Hz (Option : AC220V/3PH/50Hz )
|
Operating system
|
Syntec from Taiwan
|
Net weight
|
2000 KG
|
2300 KG
|
2600 KG
|
Gross weight
|
2300 KG
|
2600 KG
|
2900 KG
|
