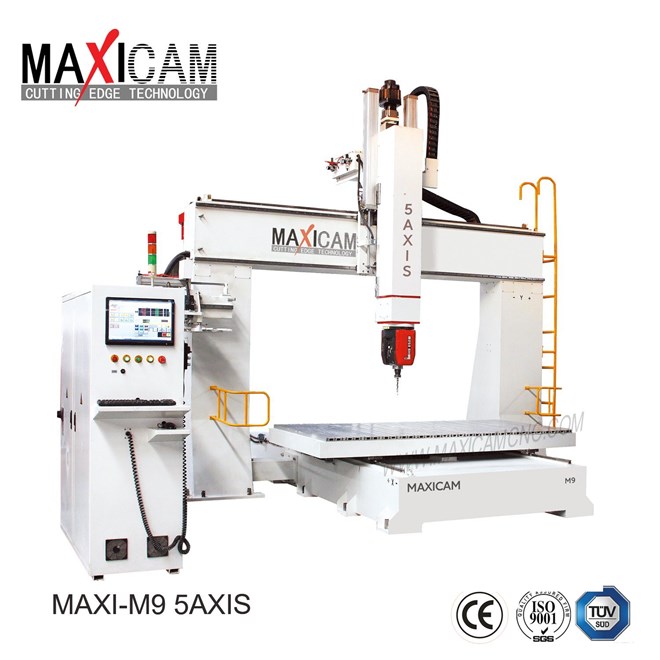

UUC Axis:
1) Maximum continuous working speed=100 °/sec
2) Maximum continuous positioning speed=170 °/sec
3) Maximum continuous working torque=544 (Nm)
4) Minimum Transient working torque=824 (Nm)
UUA Axis:
1) Maximum continuous working speed=100 °/sec
2) Maximum continuous positioning speed=170 °/sec
3) Maximum continuous working torque=544 (Nm)
4) Minimum Transient working torque=824 (Nm)
Other important items:
1) Adopt HGW35 Linear guide for X and Y Axis.
2) Adopt HGW25 Linear guide for Z Axis.
3) Adopt ELSELE Reduction box for X,Y,Z
Technical parameters:
NO
|
Function
|
|
Parameters
|
1
|
Travelling size
|
X travelling
|
1800mm
|
Y travelling
|
3000mm
|
Z travelling
|
950mm
|
C travelling
|
±130℃
|
A travelling
|
±105℃
|
2
|
Table size
|
|
1250x2500mm
|
3
|
Structure
|
Table structure
|
Cast steel
|
X、Y、Z structure
|
X/Y rack pinion
Z ball screw
|
4
|
Speed
|
Max. travelling speed
|
45000mm/min
|
Max. working speed
|
30000mm/min
|
5
|
Spindle
|
Spindle power
|
HSD 12 KW
|
Spindle speed
|
100-240000r/min
|
6
|
Working mode
|
|
Servo system
|
7
|
Working voltage
|
|
AC380V/50Hz
|
8
|
Working command
|
|
G code, F/S
|
9
|
Operating system
|
|
OSAI
|
